Cloud Native Buildpacks transform your application source code into images that can run on any cloud and avoid ever having a write Dockerfile again after all why would you even care about a Dockerfile?
So in today's post we are going to take a look at how Snyk App with Snyk Container can scan those Cloud Native Buildpack OCI images for you.
Snyk Container equips developers to quickly fix container issues. Use the following to find out more about Snyk Container - https://snyk.io/product/container-vulnerability-management/
You may not always have access to the original source code that runs in your containers, but vulnerabilities in your code dependencies are still important. Snyk can detect and monitor open source dependencies for popular languages as part of the container scan which is important because Cloud Native Buildpacks are building container images from source code using popular programming languages.
Demo
1. First let's clone spring petclinic app and create our artifact for deployment.
$ git clone https://github.com/spring-projects/spring-petclinic
$ cd spring-petclinic
$ /mvnw package
2. Install pack so we can build some OCI images directly into our registries from a simple CLI. Instructions as follows
3. Test kpack is installed by listing the suggested builders
$ pack --version
0.18.1+git-b5c1a96.build-2373
$ pack builder suggest
Suggested builders:
Google: gcr.io/buildpacks/builder:v1
Heroku: heroku/buildpacks:18
Heroku: heroku/buildpacks:20
Paketo Buildpacks: paketobuildpacks/builder:base
Paketo Buildpacks: paketobuildpacks/builder:full
Paketo Buildpacks: paketobuildpacks/builder:tiny
At this point we are ready to go so let's create 3 OCI images and push them to 3 separate regitries as follows
- Dockerhub
- Amazon Elastic Container Registry (ECR)
- Google Cloud Registry (GCR)
Note: Your local docker desktop needs to be able to establish connections to the 3 registries above
4. Build an OCI image of petclinic to Dockerhub.
$ pack build pasapples/petclinic:latest --builder paketobuildpacks/builder:base --publish --path ./spring-petclinic/target/spring-petclinic-2.4.5.jar
base: Pulling from paketobuildpacks/builder
Digest: sha256:a6f81cb029d4d3272981c12dad7212a5063ec0076e2438b7b5bb702f2e1fd11a
Status: Image is up to date for paketobuildpacks/builder:base
===> DETECTING
5 of 18 buildpacks participating
paketo-buildpacks/ca-certificates 2.2.0
paketo-buildpacks/bellsoft-liberica 8.0.0
...
Adding label 'org.opencontainers.image.version'
Adding label 'org.springframework.boot.version'
Setting default process type 'web'
Saving pasapples/petclinic:latest...
*** Images (sha256:d730612833826cd9e39a7241c1fba411eacd9b5f771915b00af4b3b499838bd5):
pasapples/petclinic:latest
Successfully built image pasapples/petclinic:latest
5. Build an OCI image of petclinic to ECR.
$ pack build 300326902600.dkr.ecr.us-east-1.amazonaws.com/petclinic:latest --builder paketobuildpacks/builder:base --publish --path ./spring-petclinic/target/spring-petclinic-2.4.5.jar
base: Pulling from paketobuildpacks/builder
Digest: sha256:a6f81cb029d4d3272981c12dad7212a5063ec0076e2438b7b5bb702f2e1fd11a
Status: Image is up to date for paketobuildpacks/builder:base
===> DETECTING
5 of 18 buildpacks participating
paketo-buildpacks/ca-certificates 2.2.0
paketo-buildpacks/bellsoft-liberica 8.0.0
...
Adding label 'org.opencontainers.image.version'
Adding label 'org.springframework.boot.version'
Setting default process type 'web'
Saving 300326902600.dkr.ecr.us-east-1.amazonaws.com/petclinic:latest...
*** Images (sha256:d730612833826cd9e39a7241c1fba411eacd9b5f771915b00af4b3b499838bd5):
300326902600.dkr.ecr.us-east-1.amazonaws.com/petclinic:latest
Successfully built image 300326902600.dkr.ecr.us-east-1.amazonaws.com/petclinic:latest
6. Build an OCI image of petclinic to GCR.
$ pack build us.gcr.io/snyk-cx-se-demo/petclinic-google:latest --builder paketobuildpacks/builder:base --publish --path ./spring-petclinic/target/spring-petclinic-2.4.5.jar
base: Pulling from paketobuildpacks/builder
Digest: sha256:a6f81cb029d4d3272981c12dad7212a5063ec0076e2438b7b5bb702f2e1fd11a
Status: Image is up to date for paketobuildpacks/builder:base
===> DETECTING
5 of 18 buildpacks participating
paketo-buildpacks/ca-certificates 2.2.0
paketo-buildpacks/bellsoft-liberica 8.0.0
...
Adding label 'org.opencontainers.image.version'
Adding label 'org.springframework.boot.version'
Setting default process type 'web'
Saving us.gcr.io/snyk-cx-se-demo/petclinic-google:latest...
*** Images (sha256:d730612833826cd9e39a7241c1fba411eacd9b5f771915b00af4b3b499838bd5):
us.gcr.io/snyk-cx-se-demo/petclinic-google:latest
Successfully built image us.gcr.io/snyk-cx-se-demo/petclinic-google:latest
Three OCI compliant images of petclinic in our 3 registries done!!!
So now it's over to Snyk.
8. Lets do a scan from the CLI by first authenticating with Snyk App as follows which will direct you to a browser to authenticate once done return to the prompt.
$ snyk auth
9. Now you can run a snyk container test to any of the 3 registries we used as follows.
$ snyk container test us.gcr.io/snyk-cx-se-demo/petclinic-google:latest
$ snyk container test 300326902600.dkr.ecr.us-east-1.amazonaws.com/petclinic:latest
$ snyk container test pasapples/petclinic:latest
Demo Output
Testing us.gcr.io/snyk-cx-se-demo/petclinic-google:latest...
✗ Low severity vulnerability found in shadow/passwd
Description: Time-of-check Time-of-use (TOCTOU)
Info: https://snyk.io/vuln/SNYK-UBUNTU1804-SHADOW-306209
Introduced through: shadow/passwd@1:4.5-1ubuntu2, apt@1.6.13, shadow/login@1:4.5-1ubuntu2
From: shadow/passwd@1:4.5-1ubuntu2
From: apt@1.6.13 > adduser@3.116ubuntu1 > shadow/passwd@1:4.5-1ubuntu2
From: shadow/login@1:4.5-1ubuntu2
...
✗ Medium severity vulnerability found in gcc-8/libstdc++6
Description: Information Exposure
Info: https://snyk.io/vuln/SNYK-UBUNTU1804-GCC8-572149
Introduced through: gcc-8/libstdc++6@8.4.0-1ubuntu1~18.04, apt/libapt-pkg5.0@1.6.13, apt@1.6.13, meta-common-packages@meta
From: gcc-8/libstdc++6@8.4.0-1ubuntu1~18.04
From: apt/libapt-pkg5.0@1.6.13 > gcc-8/libstdc++6@8.4.0-1ubuntu1~18.04
From: apt@1.6.13 > gcc-8/libstdc++6@8.4.0-1ubuntu1~18.04
and 2 more...
Organization: pas.apicella-41p
Package manager: deb
Project name: docker-image|us.gcr.io/snyk-cx-se-demo/petclinic-google
Docker image: us.gcr.io/snyk-cx-se-demo/petclinic-google:latest
Platform: linux/amd64
Licenses: enabled
Tested 97 dependencies for known issues, found 25 issues.

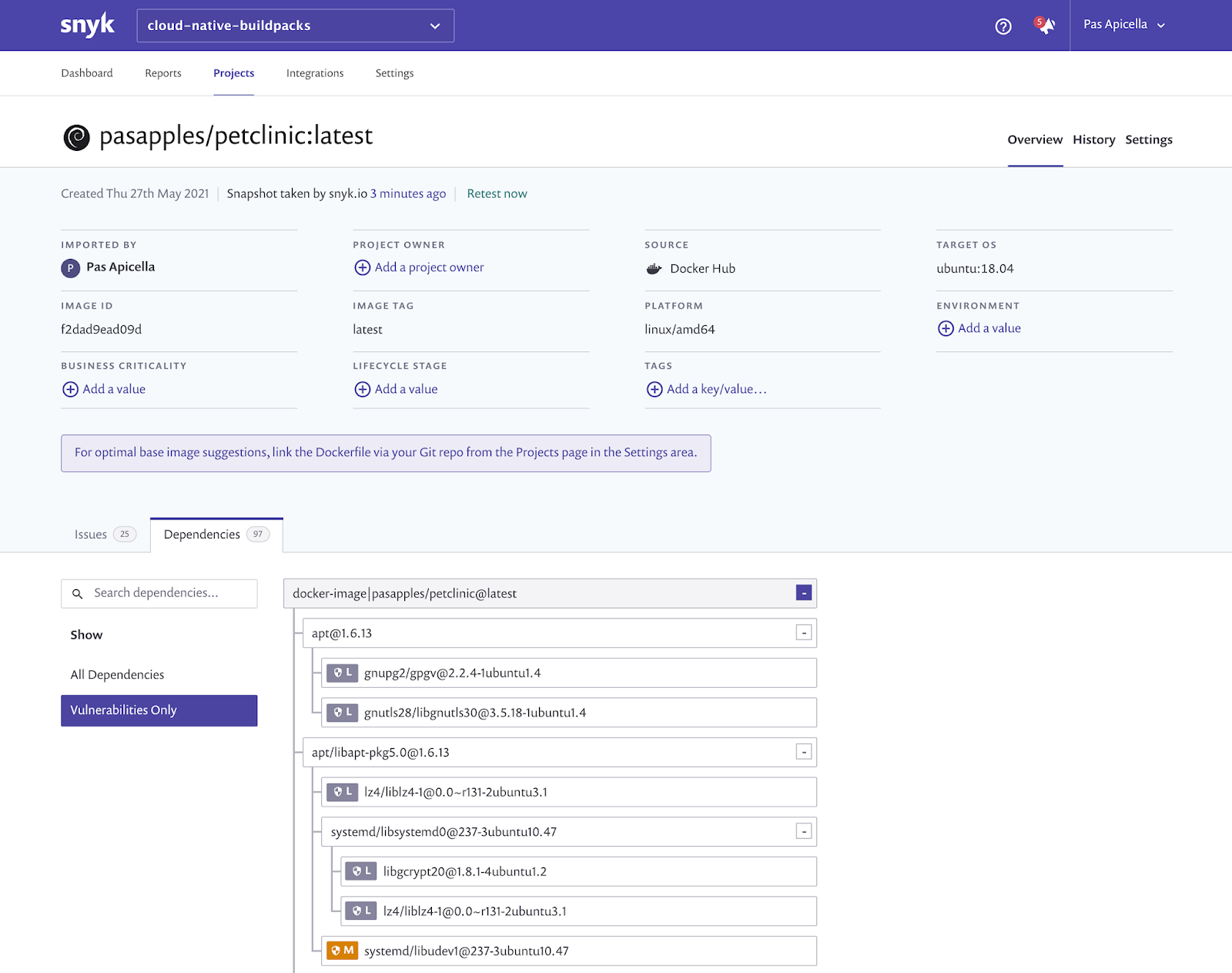

10. Back to Snyk App we can import all 3 OCI images from all 3 registries once we configure each integration for the registries as shown below
11. And take a look at where the vulnerabilities exist within those open source dependencies used in our petclinic source code as well as base image layer vulnerabilities
Give
Snyk App a go yourself and start scanning those OCI container images built using Cloud Native Buildpacks now!!!
More Information
Main Snyk Web Page
Snyk Container
